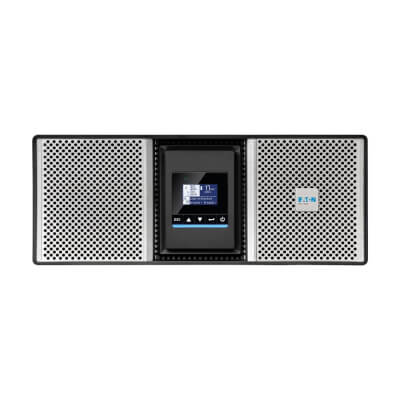

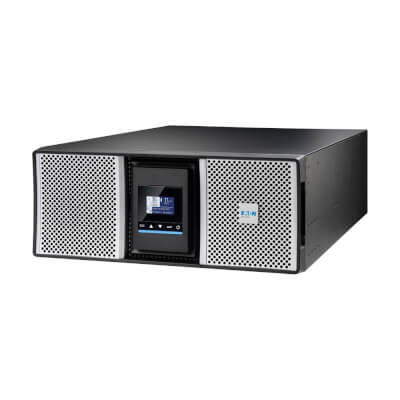

Onduleur Eaton 9PX Gen2 HotSwap Netpack, 8 000 VA, 8 000 W, Entrée : câblée, Sorties : (4) C39, câblées, Rack/tour, 4U, Carte réseau Gigabit incluse, Kit de montage en rack inclus, Bypass de maintenance inclus
Spécifications générales :
| Product Name |
Eaton 9PX Gen2 UPS
|
| Catalog Number |
9PX8KIRTNBPG2
|
| Model Code |
Eaton 9PX 8000i RT4U HotSwap Netpack G2
|
| EAN |
3553340710605
|
| Product Length/Depth |
725 mm
|
| Product Height |
174 mm
|
| Product Width |
440 mm
|
| Product Weight |
83.4 kg
|
| Warranty |
3 year on electronics, 2 year on battery
|
| Compliances |
LVD Directive (CB)
EMC Directive
RoHS Directive
REACH
WEEE Directive
Packaging Directive
Batteries Directive
|
| Certifications |
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
ENERGY STAR certified
CE
cULus
UKCA
Cm
Ukr
RCM
|
Spécifications du produit :
| Special features |
- Double conversion topology
- Constantly regulates voltage and frequency
- Up to 97.2% Energy efficient, Energy Star qualified, reduce energy and cooling costs
- 4U form factor
- Provides more real power (watts) to protect more equipment with a unity power factor
- Internal bypass allows service continuity in case of UPS fault
- Graphical LCD display
- Network card and rackmounting kit delivered as standard
- External Maintenance Bypass delivered as standard
- Compatible with Virtual environments
- Meter energy consumption (at the UPS level)
- Hot swappable batteries
|
| Topology |
Online/Double-conversion
|

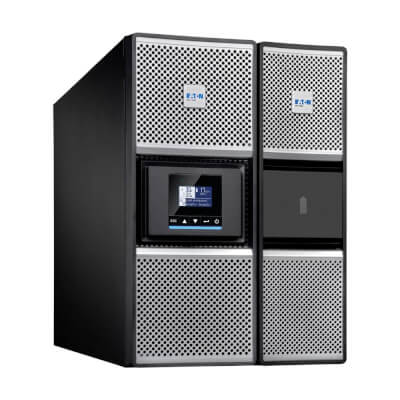

| Form factor |

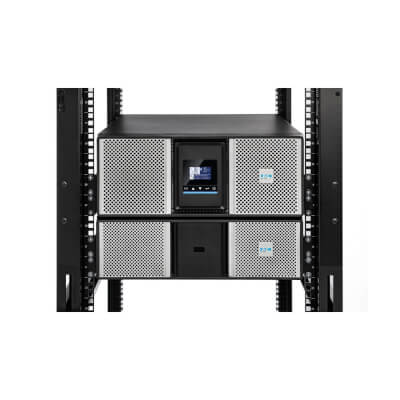

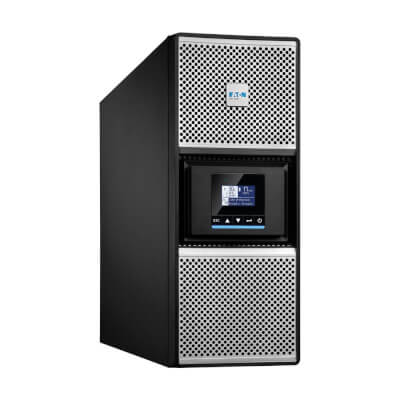

Rack/tower
|
| Rack size |

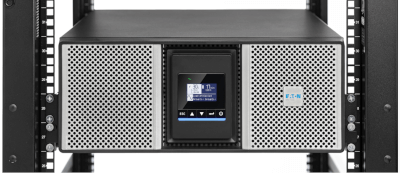

4U
|
| Construction type |
482.6 mm (19 inch) device
|
| Color |
Black/silver
|
| VA rating |
8 kVA
|
| Wattage |
8 kW
|

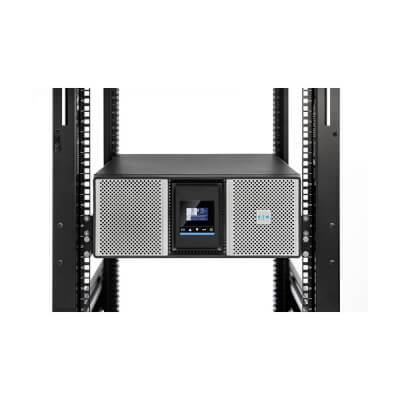

| Rack mounting kit |
Yes
|
| Package contents |
- UPS
- (3) cable glands
- (2) IEC-IEC output cables (1,2m)
- USB cable (1,8m)

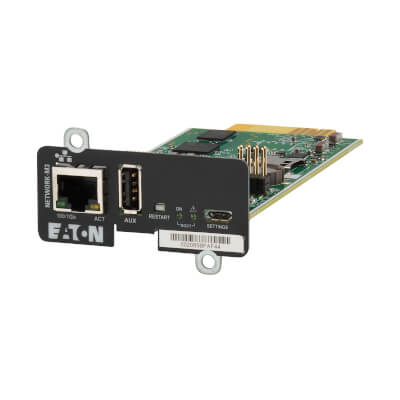

- Network Management Card

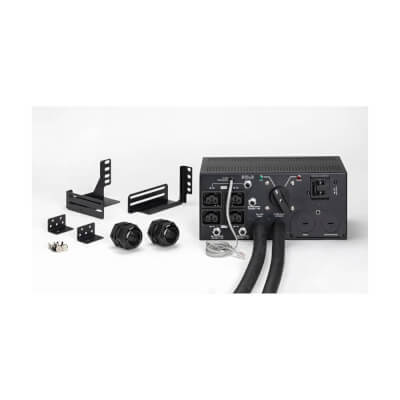

- Maintenance Bypass

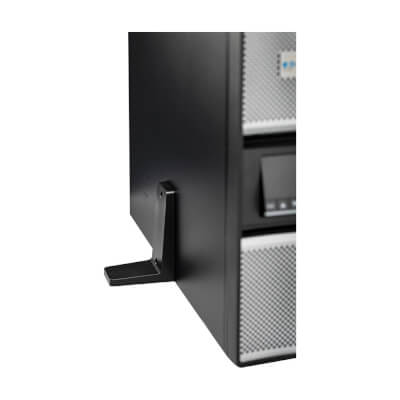

- Supports for tower mounting
- Rack-mounting kit with brackets and slides for UPS
- Mounting kit for Maintenance Bypass
- Safety instructions
- Quickstart guide
|
| Internal bypass |
Yes
|
| Hot swap power |
Yes
|
| Auto shutdown function |
Yes
|
| Primary frequency - max |
70 Hz
|
| Primary frequency - min |
40 Hz
|
| Input connection |
Hardwired/fixed connection
|
| Input nominal voltage |
230V default (200/208/220/230/240V)
|
| Nominal frequency |
50/60 Hz
|
| Input frequency range |
40-70 Hz
|
| Input power factor |
>.99
|

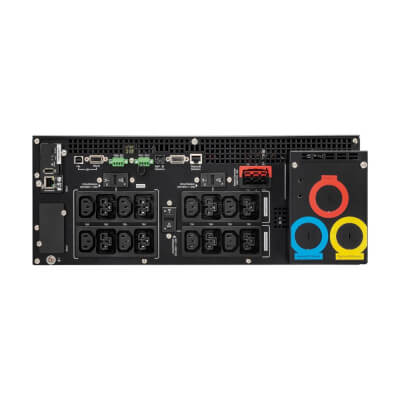

| Receptacle |

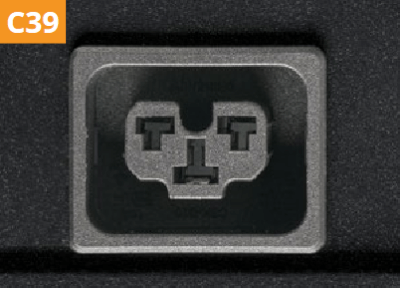

(8) C13, (8) C39, Hardwired
|
| Number of Outputs C13 |
8
|
| Number of Outputs C19 |
8
|
| Number of outputs hardwired |
1
|
| Output waveform |
Sine wave
|
| Voltage |
230V
|
| Output nominal voltage |
230V default (200/208/220/230/240V)
|
| Feed type |
1
|
| Voltage type |
AC
|
| Runtime graph |
View runtime graph
|
| Battery management |
- ABM+ (Predictive battery life) & Temperature compensated charging method (user selectable)
- Automatic battery test
- Deep discharge protection
- Automatic recognition of external battery units
|
| Battery replacement |

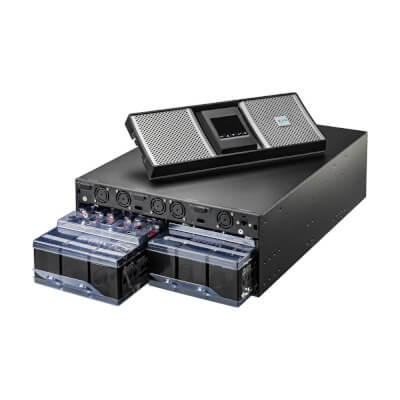

Hot-swappable internal batteries and extended battery modules (EBMs)
|
| Battery rating |
12 V / 9 Ah
|
| Battery type |
Sealed, lead-acid
|

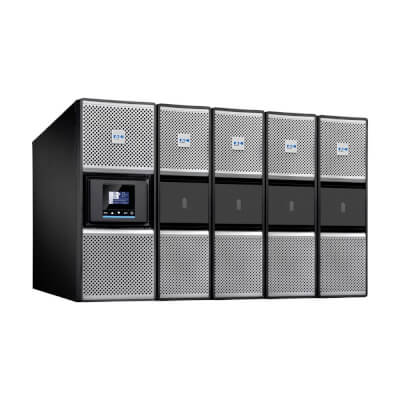

| Extended battery capability |
Yes
|
| Runtime at half load |
15.2 min
|
| Communication |
- USB port (HID compliant)
- Serial port (RS232)
- Mini terminal block for remote On/Off
- Mini-terminal block for remote power off
- Mini-terminal block for dry contacts outputs (2 contacts)
- Network card
|
| Expansion slots |
2 slots, network card included
|
| Ethernet interface |
Yes
|
| Includes network card |
Yes
|
| Software compatibility |
Eaton Brlightlayer Software suite
|

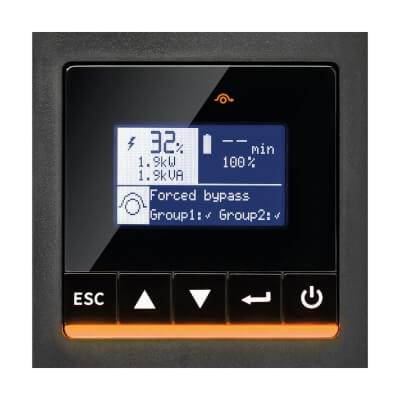

| User interface |

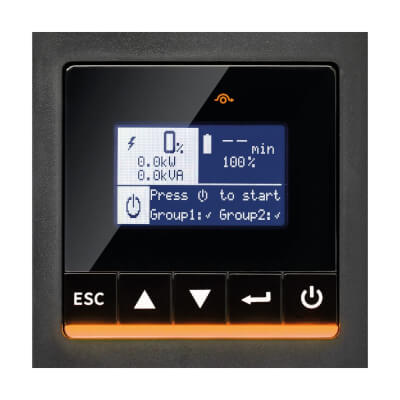

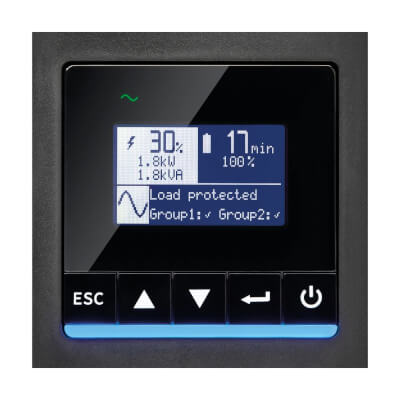

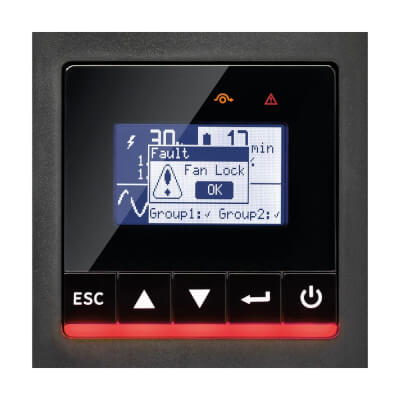

Multilingual graphical LCD display
|
| Type of interface |
Other
|
| Potential free switch contact |
Yes
|
| Altitude |
3000 m
|
| BTU Rating |
Online: 728 BTU/hr
|
| Noise level |
<37 dB at 1 meter
|
| Relative humidity |
0-95% non-condensing
|
| Temperature range |
0° to 40°C (32° to 104°F)
|
| Protocol |
SNMP
|
| Integrated functionality |
Network Mangement
|
| Input voltage - max |
276 V
|
| Input voltage - min |
100 V
|
| Output voltage - max |
240 V
|
| Output voltage - min |
200 V
|
| Secondary frequency - max |
60 Hz
|
| Secondary frequency - min |
50 Hz
|
| Battery quantity |
20
|
| Efficiency |
97.3
|
| Efficiency (eco-mode) |
99.5
|
| Input voltage range |
176-276 V (100-276 V with derating)
|
| Max number of battery packs |
12
|
| Output frequency |
50/60 Hz
|
| Output power factor |
1
|
| Output voltage range |
200/208/220/230/240 V +/- 1%
|
| Phase (input) |
1
|
| Phase (output) |
1
|
| Runtime at full load |
5.4 min
|
| Voltage distortion output (linear load) - max |
1
|
| Communication interface |
USB
RS232
|
| Power consumption |
214 W
|
