Omada AC1350 Gigabit Wi-Fi Gateway
-
AC1350 Dual-Band WiFi: Up to 1317 Mbps Wi-Fi.*
-

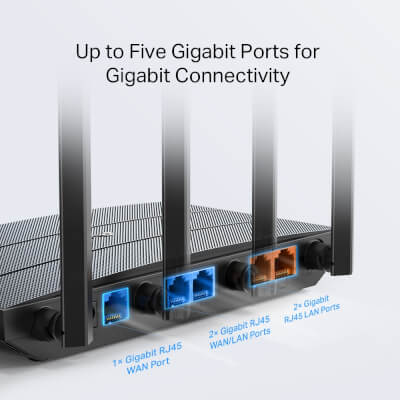

5× Gigabit Ethernet Ports: Provide high-speed wired connectivity.
-
Centralized Management: Cloud access and the Omada app for easy management.
-
Powerful Traffic Control: Load Balancing on up to 3× WAN ports.
-

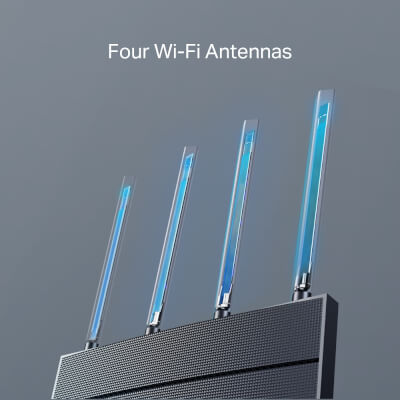

Boosted Coverage: 4× external antennas extend and concentrate the Wi-Fi signals.
-
Abundant Security Features: DoS defense,IP/MAC/URL filtering, and more protect your network and data.
L’ER605W est un routeur VPN Gigabit bi-bande haute performance de TP-Link, spécialement conçu pour les commerces de détail, les petits magasins, les petites chaînes de magasins, les succursales, etc1.
Il crée un réseau fiable alimenté par la technologie Wi-Fi 802.11ac1.
Quelques caractéristiques clés :
Wi-Fi bi-bande AC1350 :
prend en charge 867 Mbit/s sur 5 GHz et 450 Mbit/s sur 2,4 GHz1. 5 ports
Gigabit Ethernet :
Offre une connectivité filaire haut débit1.

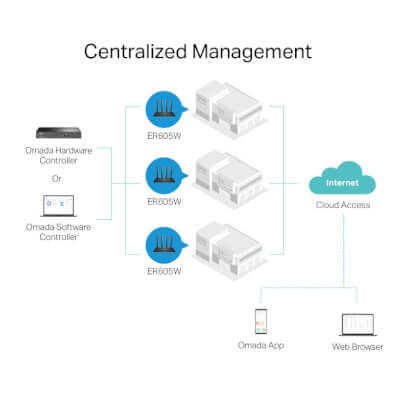

Gestion centralisée :
accès au cloud et application Omada pour une gestion ultra-pratique et facile1.

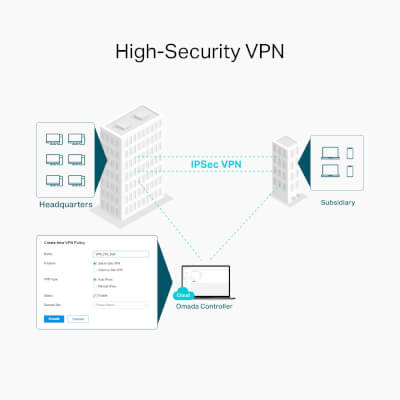

VPN haute sécurité :
prend en charge plusieurs protocoles VPN, notamment IPSec, OpenVPN, PPTP, L2TP, ce qui permet aux utilisateurs d’établir des connexions à distance de manière plus flexible1.
Couverture améliorée :
quatre antennes externes étendent et concentrent les signaux Wi-Fi1.
Fonctionnalités de sécurité abondantes :
des fonctionnalités avancées telles que la défense DoS, le filtrage IP/MAC/URL, etc., protègent votre réseau et vos données1. Pour plus d’informations, vous pouvez visiter le site web de TP-Link1.
| SECURITY |
| Access Control |
Source/Destination IP Based Access Control |
| Filtering |
• Web Group Filtering†
• URL Filtering
• Web Security† |
| ARP Inspection |
• Sending GARP Packets
• ARP Scanning†
• IP-MAC Binding |
| Attack Defense |
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN |
| HARDWARE FEATURES |

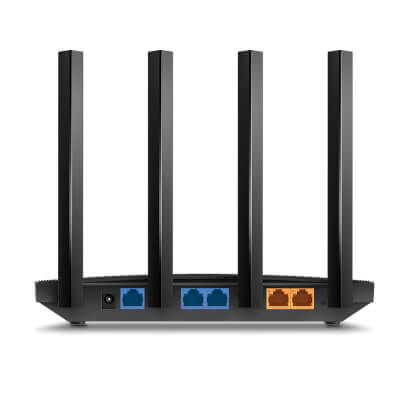

| Interface |
• 1× Gigabit WAN Port
• 2× Gigabit WAN/LAN Ports
• 2× Gigabit LAN Ports |
| Button |
Reset Button |
| Power Supply |
12V DC / 1A Power Adapter |
| Wi-Fi Frequency & Signal Rate |
• 2.4 GHz: 450 Mbps
• 5 GHz: 867 Mbps |
| Flash |
16 MB NORFLASH |
| DRAM |
128 MB DDR2 |
| LED |
Power, SYS, 2.4G, 5G, WAN (1000/100/10M Link/Act), WAN/LAN (1000/100/10M Link/Act) |
| Dimensions ( W x D x H ) |
8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm) |
| Antenna |
• 2.4 GHz: 2x 5 dBi non-detachable antennas and 1 built-in antenna
• 5 GHz: 2x 5 dBi non-detachable antennas |
| Mounting |
Desktop/Wall-mounting |
| Max Power Consumption |
• EU: 10W
• US: 12W |
| PERFORMANCE |
| Concurrent Session |
20,000 |
| New Sessions /Second |
1,300 |
| NAT (Static IP) |
941.2 Mbps / 937.6Mbps |
| NAT(DHCP) |
933.5 Mbps / 933.6 Mbps |
| NAT(PPPoE) |
919.2 Mbps / 931.9 Mbps |
| NAT (L2TP) |
333.2 Mbps / 387.4 Mbps |
| NAT (PPTP) |
304.2 Mbps / 473.2 Mbps |
| IPsec VPN Throughput |
• ESP-SHA1-AES256: 19.7Mbps
• ESP-SHA256-AES256: 17.5Mbps
• ESP-SHA384-AES256: 13.9Mbps
• ESP-SHA512-AES256: 13.9Mbps |
| OpenVPN |
18.0 Mbps |
| L2TP VPN Throughput |
• Unencrypted: 307.7 Mbps
• Encrypted: 9.8 Mbps |
| PPTP VPN Throughput |
• Unencrypted: 319.6 Mbps
• Encrypted: 41.9 Mbps |
| 66 Byte Packet forwarding rate |
1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate |
81,274 pps / 81,275 pps |
| WIRELESS FEATURES |
| Advanced Functions |
• Multiple SSIDs: 8 in total (4 per radio)
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Guest Network
• Automatic Channel Selection Algorithm
• Transmit Power Control: Adjust transmit Power on dBm
• Seamless Roaming
• Beamforming
• Rate Limit: Based on SSID/Client
• Load Balance
• Airtime Fairness
• Band Steering
• RADIUS Accounting
• Wireless Encryption: WPA/WPA2 Personal, WPA/WPA2 Enterprise |
| Guest Network |
Support |
| BASIC FUNCTIONS |
| WAN Connection Type |
• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP |
| MAC Clone |
Modify WAN Address |
| DHCP |
• DHCP Server
• DHCPv6 PD Server†
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP |
| IPv6 |
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN |
802.1Q VLAN |
| IPTV |
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS |
| Advanced Routing |
• Static Routing
• Policy Routing |
| Bandwidth Control |
IP-Based Bandwidth Control |
| Load Balance |
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection |
| NAT |
• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering†
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP |
| Session Limit |
IP-Based Session Limit |
| VPN |
| IPsec VPN |
• 3 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS) |
| PPTP VPN |
• PPTP VPN Server
• PPTP VPN Client (3)△
• 3 Tunnels
• PPTP with MPPE Encryption |
| L2TP VPN |
• L2TP VPN Server
• L2TP VPN Client (3)△
• 3 Tunnels
• L2TP over IPSec |
| OpenVPN |
• OpenVPN Server
• OpenVPN Client (3)△
• 18 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode |
| AUTHENTICATION |
| Web Authentication |
• No Authentication
• Simple Password§
• Hotspot (Local User / Voucher§ / SMS§ / Radius§)
• External Radius Sever
• External Portal Sever§
• LDAP (not supported in Standalone Mode) |
| MANAGEMENT |
| Omada App |
Yes. |
| Centralized Management |
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller |
| Cloud Access |
Yes. |
| Service |
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance |
• Web Management Interface
• Remote Management
• Export & Import Configuration
• Diagnostics (Ping & Traceroute)†
• NTP Synchronize†
• Port Mirroring
• Syslog Support |
| Zero-Touch Provisioning |
Yes. Require the use of Omada Cloud-Based Controller. |
| Management Features |
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
• ER605W
• Power Adapter
• Quick Installation Guide |
| System Requirements |
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux |
| Environment |
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network.
†These functions are supported only in Standalone Mode.
§These functions are supported only in Controller Mode.
