TPLink PLT12-C+
GPON OLT SFP Class C+ Optical Module TP-Link PLT12-C
High performance GPON OLT SFP transceiver module is designed for Passive Optical Network application, 2.488Gbps downstream and 1.244Gbps upstream. GPON SFP OLT transceiver module is compatible with GPON Optical Line Terminals (OLT) according to ITU-T G.984.2.

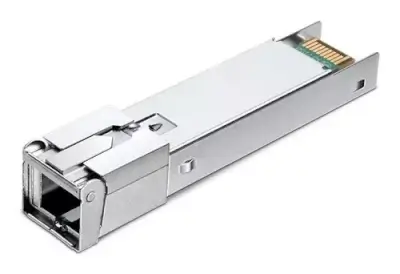

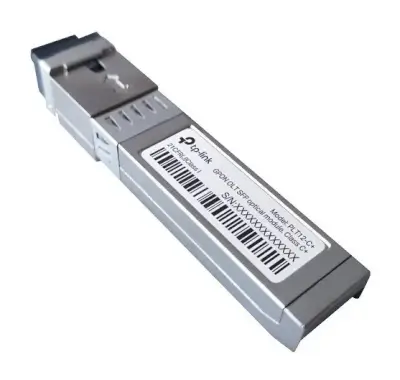

TP-Link PLT12-C+ – GPON OLT SFP optical module, Class C+, single mode, SC/UPC, wavelength 1490nm TX /1310nm RX.
Format : SFP
For cable type : Single Mode
Transmission speed :1.244 / 2.488 Gbps
Wavelength – Tx/Rx [nm] :1490 / 1310
Distance : 20km
Transfer type : XPON
Polishing type : UPC
Optical Connectors :(1) SC
FEATURES :
Single fiber bi-directional data links asymmetric TX 2488Mbps/RX 1244Mbps application
Small Form Factor Pluggable package with SC/UPC connector
Single 3.3V power supply
1490nm continuous-mode DFB laser transmitter and 1310nm Burst-mode APD/TIA receiver
Class C+ Optical Line Terminal (OLT) for ITU-T G.984.2 Gigabit-capable Passive Optical Networks (GPON)
Reset burst-mode receiver design support more than 15dB dynamic range.
Burst Digital Receiving Signal Strength Indication (RSSI)
0 to 70℃ for commercial Case Operating Temperature Range
-40 to 85℃ for industrial Case Operating Temperature Range
Digital burst RSSI function to monitor the input optical power level
LVPECL compatible data input/output interface
LVTTL transmitter disable control and transmitter laser fault alarm
LVTTL fast receiver Signal Detect (SD) indication response
Low EMI and excellent ESD protection
Class 1 Laser safety standard IEC-60825 compliant
APPLICATIONS :
Gigabit-Capable Passive Optical Networks Class C+ 20km 17~32dB attenuation range
STANDARDS :
Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
Complies with ITU-T G.984.2 Amendment 2
Complies with SFF 8472 V9.5
Complies with FCC 47 CFR Part 15, Class B
Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
